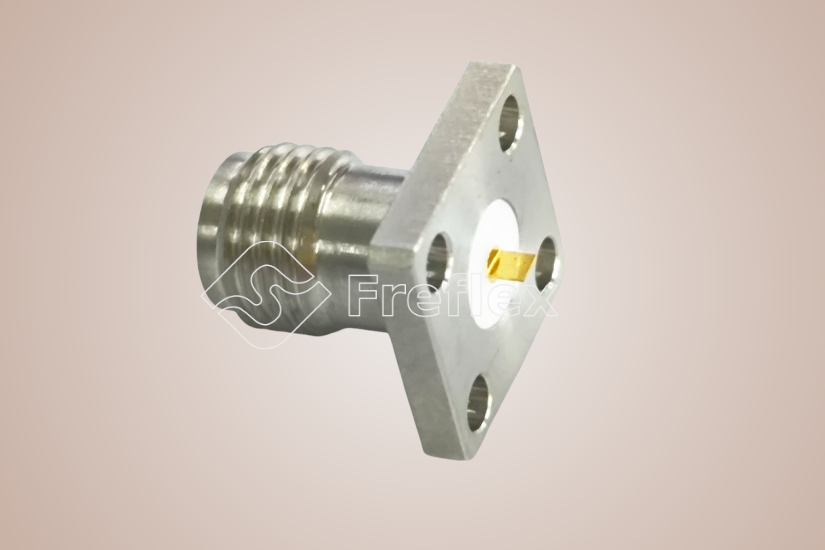

Freflex provides various Tab Terminal Connectors to meet different requirements. The frequency range covers DC~26.5GHz, and including SMA, N, TNC etc..
Features:
- Low VSWR
Applications:
- Wireless
- Radar
- Instruments
- Electronics
| Part Number | Connector | Frequency(GHz) | VSWR(Max.) | PIN(Φmm) | Description | Lead Time (week) |
|---|---|---|---|---|---|---|
| FCS-FL2G-T | SMA Female | DC~26.5 | 1.15 | 0.64*0.2, 1.27*0.15 | 2-hole Flange Mount | 0~4 |
| FCS-FL4G-T | SMA Female | DC~26.5 | 1.15 | 0.64*0.2, 1.27*0.15 | 4-hole Flange Mount | 0~4 |
| FCN-FL4G-T | N Female | DC~18 | 1.15 | 1.5*0.2 | 4-hole Flange Mount | 0~4 |
| FCN-ML4G-T | N Male | DC~18 | 1.15 | 1.5*0.2 | 4-hole Flange Mount | 0~4 |
| FCT-FL4G-T | TNC Female | DC~18 | 1.15 | 1.5*0.2 | 4-hole Flange Mount | 0~4 |
| FCT-ML4G-T | TNC Male | DC~18 | 1.15 | 1.5*0.2 | 4-hole Flange Mount | 0~4 |
