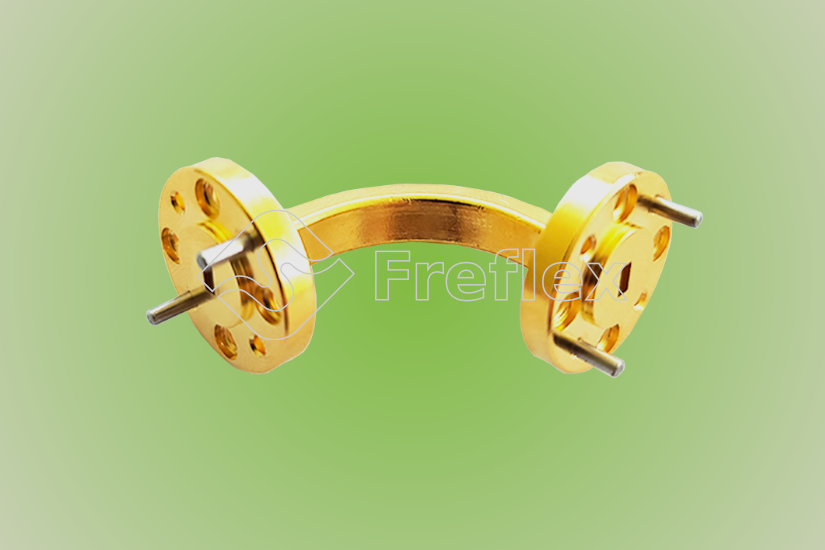

Freflex supplies Waveguide Bends cover the frequency range up to 110GHz, as well as customized Waveguide Bends according to customers requirements.
Features:
- Low VSWR
Applications:
- Wireless
- Transceiver
- Laboratory Test
- Broadcast
| Part Number | Frequency (GHz) | IL (dB, max.) | VSWR (max.) | Waveguide Size | Flange | Lead Time (weeks) |
|---|---|---|---|---|---|---|
| FWB-10 | 73.8~110 | - | 1.15 | WR-10 (BJ900) | UG387/UM | 2~4 |
| FWB-12 | 60.5~91.9 | - | 1.15 | WR-12 (BJ740) | UG387/U | 2~4 |
| FWB-15 | 49.8~75.8 | - | 1.15 | WR-15 (BJ620) | UG385/U | 2~4 |
| FWB-90 | 8.2~12.5 | 0.1 | 1.1 | WR-90 (BJ100) | FBP100 | 2~4 |
| FWB-187 | 3.94~5.99 | 0.15 | 1.15 | WR-187 (BJ48) | FDM48 | 2~4 |
| FWB-340 | 2.17~3.3 | - | 1.1 | WR-340 (BJ26) | FBP26 | 2~4 |
| FWB-430 | 1.72~2.61 | 0.1 | 1.1 | WR-430 (BJ22) | FDP22 | 2~4 |
| FWB-650 | 1.13~1.73 | - | 1.1 | WR-650 (BJ14) | FDP14 | 2~4 |
| FWB-D180 | 18~40 | 0.45 | 1.15 | WRD-180 | FPWRD180 | 2~4 |
| FWB-D650-D750 | 8~18 | 0.4 | 1.2 | WRD-650, WRD-750 | FPWRD650, FPWRD750 | 2~4 |
| FWB-D750 | 7.5~18 | 0.4 | 1.2 | WRD-750 | FPWRD750, FMWRD750 | 2~4 |
| FWB-D750-45-15-EH-A-8-01 | 7.5~18 | 0.3 | 1.2 | WRD-750 | FPWRD750 | 2~4 |
| FWB-D350 | 3.5~8.2 | 0.2 | 1.2 | WRD-350 | FPWRD350 | 2~4 |
