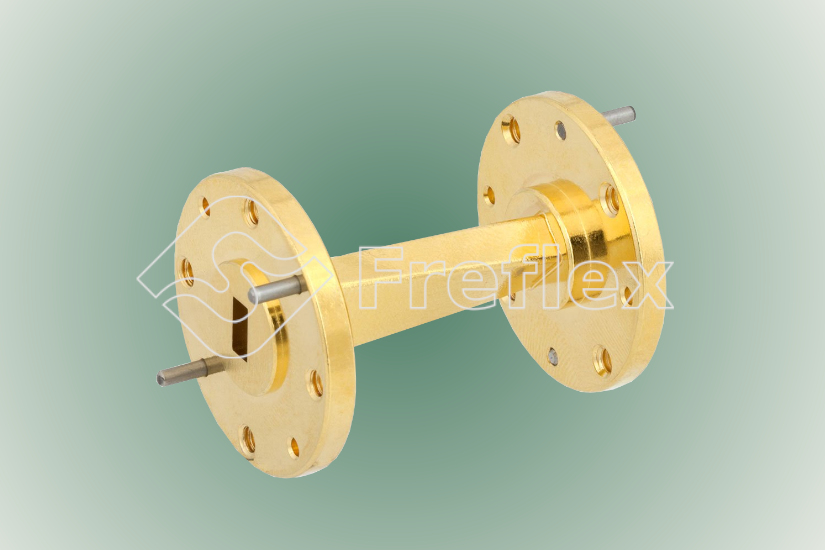

Freflex supplies Waveguide Twists cover the frequency range up to 110GHz, as well as customized Waveguide Twists according to customers requirements.
Features:
- Low VSWR
Applications:
- Wireless
- Transceiver
- Laboratory Test
- Broadcast
| Part Number | Frequency (GHz) | IL (dB, Max.） | VSWR (Max.) | Waveguide Size | Flange | Lead Time (Weeks) |
|---|---|---|---|---|---|---|
| FTW-10 | 73.8~110 | - | 1.15 | WR-10 (BJ900) | UG387/UM | 2~4 |
| FTW-15 | 50~75 | - | 1.15 | WR-15 (BJ620) | UG385/U | 2~4 |
| FTW-62 | 11.9~18 | 0.1 | 1.2 | WR-62 (BJ140) | FBP140 | 2~4 |
| FTW-D180 | 18~40 | - | 1.2 | WRD-180 | FPWRD180 | 2~4 |
| FTW-D750 | 7.5~18 | - | 1.25 | WRD-750 | FPWRD750 | 2~4 |
